Pro-NM Automixer

Automated phantom mixing for PET and SPECT QA.

Improve solution homogeneity, reduce preparation time, and lower radiation exposure to personnel.

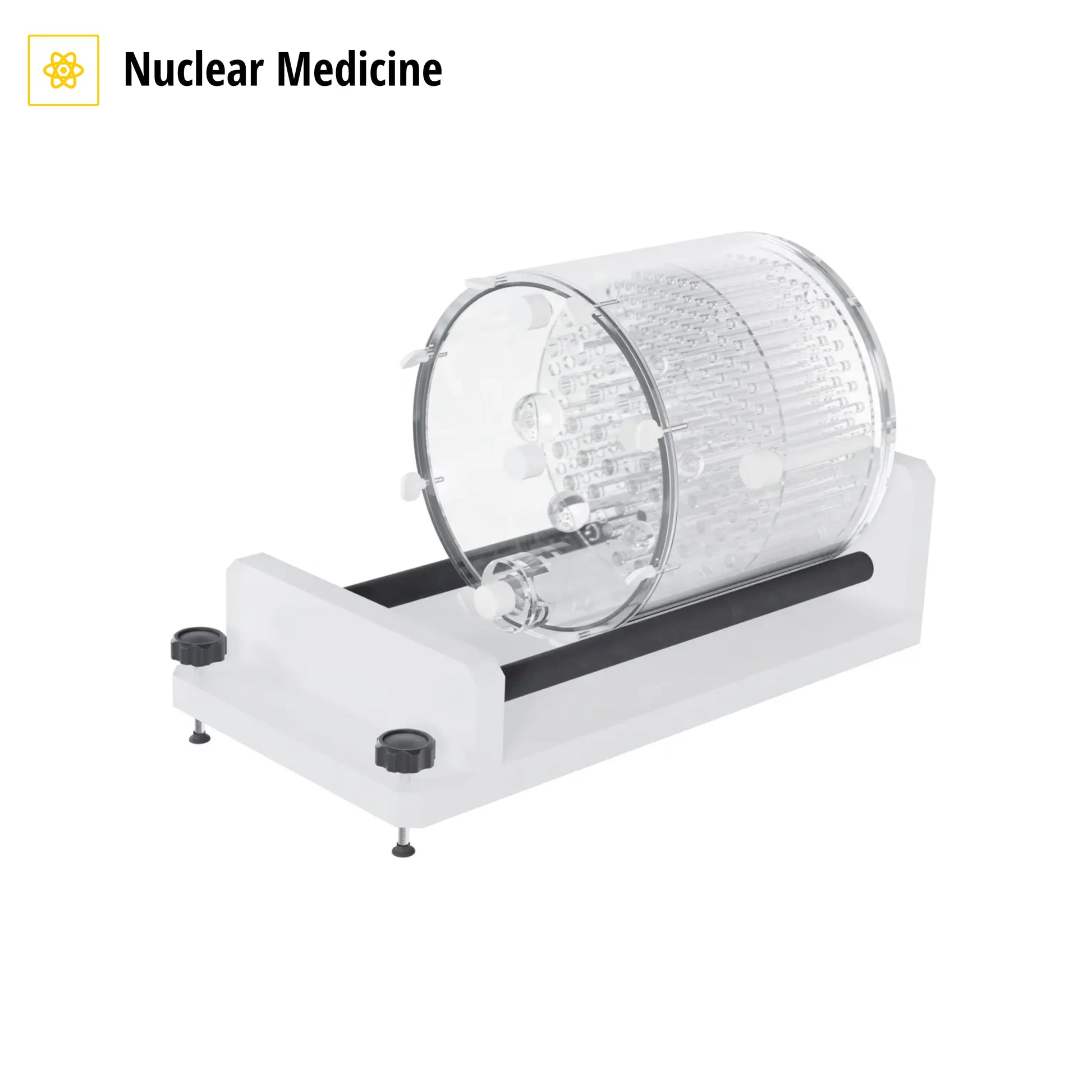

The Pro-NM Automixer is an automatic table mixer designed for preparing homogeneous radioactive solutions in cylindrical nuclear medicine phantoms – including ACR PET phantoms, NEMA IEC body phantoms, and Jaszczak SPECT phantoms. The dual-roller rotation system mixes the radio-nuclide solution while keeping the phantom safely on the bench, minimizing personnel handling time and supporting ALARA-compliant workflows.

Why choose the Pro-NM Automixer?

✅ Reduces radiation exposure – minimizes hands-on time during phantom preparation (ALARA principle)
✅ Improved solution homogeneity – critical for uniformity testing and SUV calibration accuracy
✅ Dual-roller design – rotates the phantom without contacting or damaging the cylinder surface
✅ Compatible with standard NM phantoms – Jaszczak (Ø220 mm) and NEMA IEC body phantom (Ø300 mm)
✅ Automatic, hands-free operation – no manual inversion or shaking required
✅ Quiet, low-power operation – approximately 10 W consumption

Technical specifications:

✅ Dimensions: 425 x 220 x 130 mm
✅ Weight: 4 kg
✅ Rotation speed: ~40 rpm (Jaszczak Ø220 mm), ~27 rpm (NEMA IEC Ø300 mm)
✅ Power consumption: ~10 W
✅ Power supply: plug-in power supply (AC100-240V~50/60Hz)
✅ Typical mixing time: 5–10 minutes

Compatible phantoms:

✅ Pro-NM ACR Performance PET Lid phantom
✅ Pro-NM NEMA IEC body phantom
✅ Other standard cylindrical PET/SPECT phantoms (Jaszczak Ø220 mm, NEMA Ø300 mm)

What's included:

✅ Pro-NM Automixer unit
✅ Power supply
✅ User manual with operating guidelines
✅ Optional: rotation support (sold separately)

Standards compliance:

✅ CE marked
✅ Designed for use with cylindrical phantoms requiring homogeneous radioactive solutions
✅ Detailed user manual included

Better mixing. Lower exposure. Faster prep.

Streamline your nuclear medicine QA workflow with automated, hands-free phantom preparation.

Order your Pro-NM Automixer today.
