Pro-NM ACR Performance PET

ACR-Approved. AAPM Report 177 compliant. Built for PET accreditation testing.

Refillable cylinder design for flexible hot/cold lesion configuration.

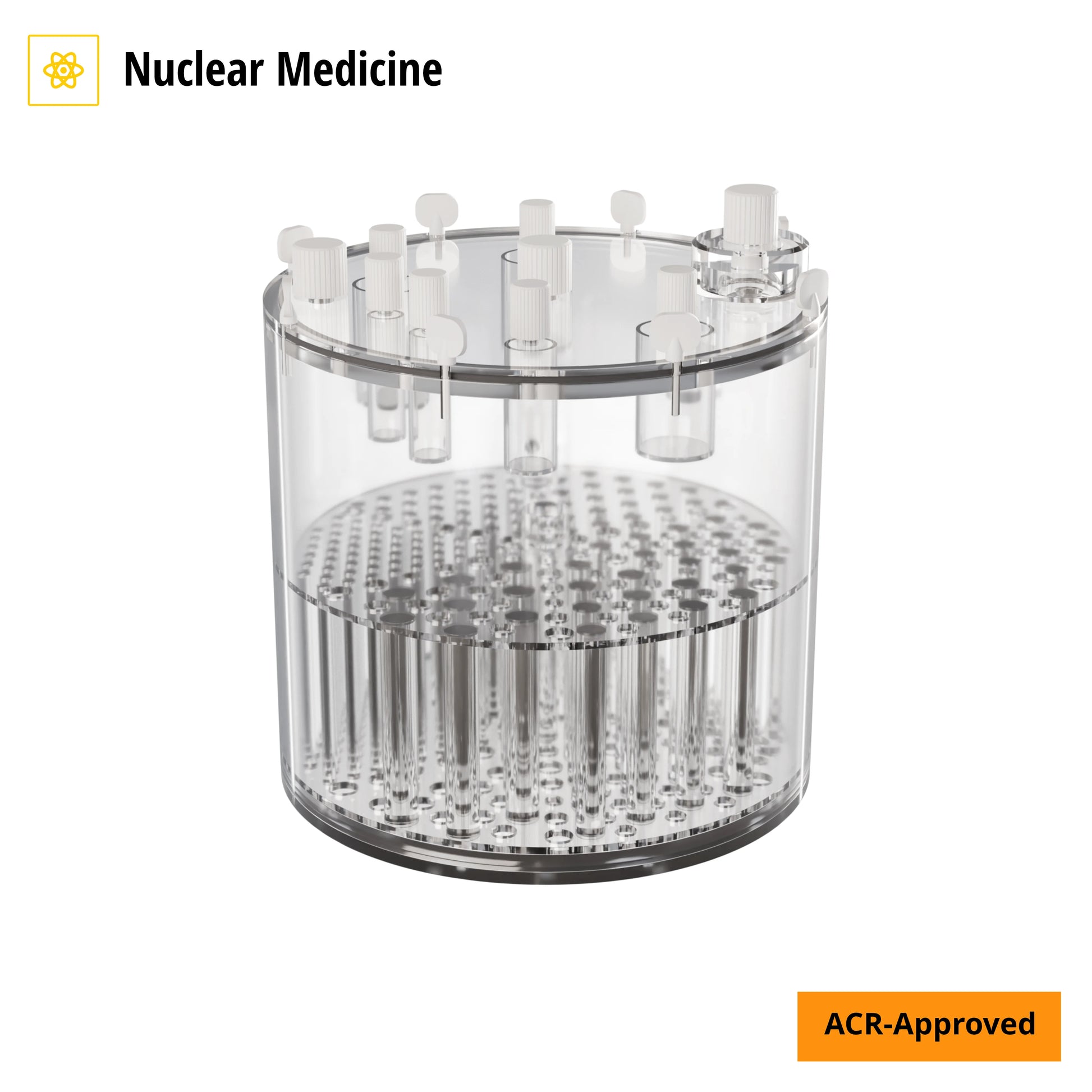

The Pro-NM ACR Performance PET Lid is a PET imaging phantom designed to meet ACR Nuclear Medicine and PET Accreditation Program requirements. It combines three test sections in a single PMMA cylinder: a cold rod insert for spatial resolution assessment (4.8–12.7 mm rods), a uniform section for SUV calibration and background uniformity testing, and an ACR-compliant PET Lid with refillable thin-walled cylinders for hot and cold lesion contrast evaluation.

Refillable cylinders, not solid spheres

Unlike standard PET phantoms with fixed-activity solid spheres, the Pro-NM PET Lid uses refillable thin-walled cylinders that allow you to set custom hot-to-background activity ratios for each test. This gives you flexibility to:

✅ Match your facility's clinical FDG protocols
✅ Adjust contrast ratios for harmonization studies
✅ Reuse the phantom across multiple test scenarios without replacing inserts

Why choose the Pro-NM ACR Performance PET Lid?

✅ ACR-Approved – meets ACR Nuclear Medicine and PET Accreditation Program requirements
✅ AAPM Report 177 compliant – aligned with current US medical physics guidelines
✅ Referenced in ACR PET Quality Control Manual (2025) – documented test protocols included
✅ Refillable cylinder configuration – flexible activity ratios for clinical and research protocols
✅ Standard ACR rod insert – 4.8, 6.4, 7.9, 9.5, 11.1, and 12.7 mm rods for spatial resolution assessment
✅ CE marked – EU regulatory compliance
✅ Detailed user manual – step-by-step test execution and results assessment

Standards compliance:

✅ ACR Nuclear Medicine and PET Accreditation Program requirements
✅ AAPM Report No. 177
✅ Referenced in Positron Emission Tomography Quality Control Manual (ACR, 2025)
✅ CE marked
✅ Comprehensive user manual with step-by-step test execution and evaluation criteria

Technical specs:

Main cylinder (PMMA)
✅ Inside diameter: 209.6 mm (8¼")
✅ Inside height: 184 mm
✅ Wall thickness: 6.4 mm (¼")
✅ HU range: 110–135
✅ Volume (empty): 6.35 L
✅ Volume with cold rod insert: 5.55 L
✅ Volume with PET Lid (no insert): 6.2 L

Cold rod insert
✅ Rod diameters: 4.8, 6.4, 7.9, 9.5, 11.1, 12.7 mm
✅ Rod height: 88 mm
✅ Standard ACR configuration and orientation

PET Lid – cylindrical samples
✅ Refillable thin-walled cylinders: 8 mm (1.9 mL), 12 mm (4.3 mL), 16 mm (7.7 mL), 25 mm (18.7 mL ×3)
✅ Air & water cylinders: 25 mm internal diameter, 29.4 mm external, 38.1 mm height
✅ Teflon® cylinder: 25 mm diameter, 38.1 mm height (bone-equivalent reference)
✅ Cylinder placement radius: ~67 mm (134 mm diameter)

Optimize your phantom preparation workflow

Tomographic uniformity testing depends on a fully homogeneous radioactive solution (typically Tc-99m). Pair your Pro-NM ACR Performance PET lid Phantom with the Pro-NM Automixer for:

✅ Hands-free, automated phantom rotation
✅ Reduced personnel radiation exposure (ALARA-compliant workflow)
✅ Consistent, reproducible solution homogeneity
✅ Mixing complete in 5–10 minutes

→ See the Pro-NM Automixer

What's included:

✅ Pro-NM ACR Performance PET Lid phantom (cylinder + cold rod insert + PET Lid)
✅ User manual with test protocols

Delivery time:

2–3 weeks from order confirmation
